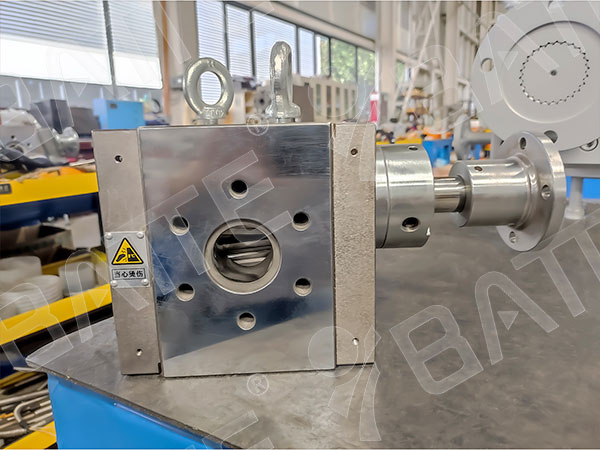

30cc Melt Pump for PP & PA: The Ultimate Solution for Precision Extrusion

In the realm of polymer processing, achieving consistent quality and efficient production of PP (Polypropylene) and PA (Polyamide) products relies heavily on precision equipment. The 30cc melt pump emerges as a game-changing component, specifically engineered to address the unique challenges of extruding these high-demand materials. This article delves into why the 30cc melt pump is the ideal choice for PP and PA processing, its technical advantages, and how it transforms extrusion lines into high-performance systems.

Why Choose a 30cc Melt Pump for PP & PA?

PP and PA materials present distinct processing requirements—PP’s low density (0.89-0.91 g/cm³) and varying melt indices, paired with PA’s high viscosity and temperature sensitivity, demand a melt pump that balances pressure stability and material compatibility. The 30cc displacement is uniquely suited for mid-scale production (30-150 kg/h output for PP/PA) , bridging the gap between small-scale laboratory pumps and large industrial units while maintaining exceptional precision.

Unlike general-purpose melt pumps, the 30cc model is optimized for the viscosity range of PP and PA (≤40,000 Pa·s), preventing shear-induced degradation—a problem that often plagues incompatible equipment. For high-melt-index (MI > 10 g/10 min) PP applications, it reduces screw torque fluctuations by up to 30%, eliminates extrusion pulsation, and increases the yield rate from 92% to 98%. For low-melt-index PA (MI < 2 g/10 min), its precision gear design minimizes shear stress (τ = η × γ), ensuring stable flow while preserving the material’s mechanical properties.

The 30cc melt pump’s performance parameters are calibrated to meet PP and PA’s processing demands:

1. Temperature Resistance: Operates at ≤400℃ (750℉) with a cleaning temperature of ≤450℃ (850℉) , accommodating PA’s higher processing temperature (280-320℃) and PP’s broader range (200-350℃) .

2. Pressure Capacity: Delivers outlet pressure up to 35-40 MPa (5,000-6,000 psi) , overcoming system resistance from filters, dies, and long pipelines—critical for thin-gauge PP film and PA fiber production.

3. Sealing Options: Offers spiral sealing, packing sealing, or custom mechanical seals , preventing high-temperature PP/PA melt leakage and ensuring operational safety.

4. Heating System: Equipped with stainless steel cartridge heaters , providing uniform temperature distribution that eliminates cold spots—essential for avoiding PA’s crystallization issues and PP’s melt degradation.

Key Benefits for PP & PA Extrusion Lines

Integrating a 30cc melt pump into PP/PA extrusion lines delivers measurable improvements:

1. Enhanced Product Quality: Optimized flow channels eliminate dead zones , reducing PP/PA material residue and ensuring consistent thickness in sheets, pipes, or profiles. The pump’s low pulsation rate (0.5%) guarantees uniform density in PP thermoforming sheets used for food packaging and medical devices.

2. Increased Production Efficiency: By shifting pressure build-up from the extruder screw to the pump , it reduces screw wear and extends extruder lifespan. For PP sheet extrusion, this translates to 10-15% higher output (100-1,000 kg/hr) while lowering energy consumption.

3. Flexible Installation: Supports horizontal or vertical mounting , adapting to existing extrusion line layouts without major modifications—ideal for retrofitting PP pipe lines or PA fiber spinning systems.

4. Long-Term Reliability: Constructed with high-temperature tool steel or nitrided steel gears (62-64 HRC hardness) , the pump resists abrasion from reinforced PP/PA (e.g., glass fiber-filled PA66) and operates reliably for 5-10 years with minimal maintenance .

Applications of 30cc Melt Pump in PP & PA Industries

1. PP Extrusion: Thermoforming sheets for disposable cups/boxes , blown film for packaging, and pipe extrusion (especially for water supply systems requiring consistent wall thickness).

2. PA Extrusion: Engineering plastic profiles (automotive parts), monofilaments for brushes/textiles, and injection molding feed systems—where precise metering prevents material waste.

3. Compounding: Blending PP/PA with additives (UV stabilizers, flame retardants) or fillers (talc, carbon fiber), ensuring uniform dispersion and batch-to-batch consistency .

The 30cc melt pump is the ultimate precision tool for PP and PA extrusion, combining tailored technical specifications, material compatibility, and performance efficiency. By addressing the unique challenges of PP/PA processing—from viscosity fluctuations to temperature sensitivity—it transforms extrusion lines into reliable, high-quality production systems. Whether upgrading an existing line or building a new PP/PA processing facility, the 30cc melt pump delivers measurable ROI through improved product consistency, reduced waste, and extended equipment life.

For polymer processors seeking to elevate their PP and PA production, investing in a 30cc melt pump isn’t just a equipment upgrade—it’s a strategic decision to stay competitive in a demanding market.
