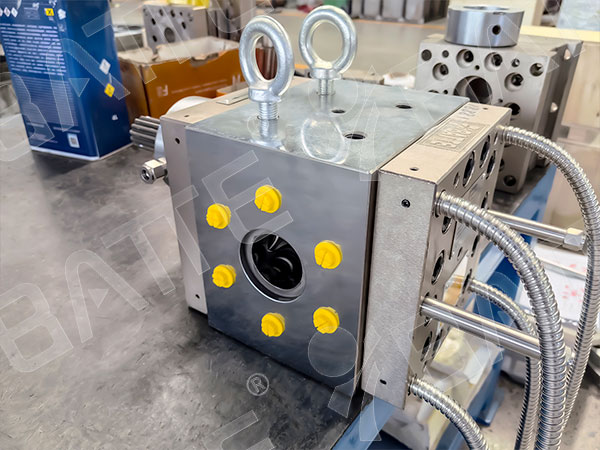

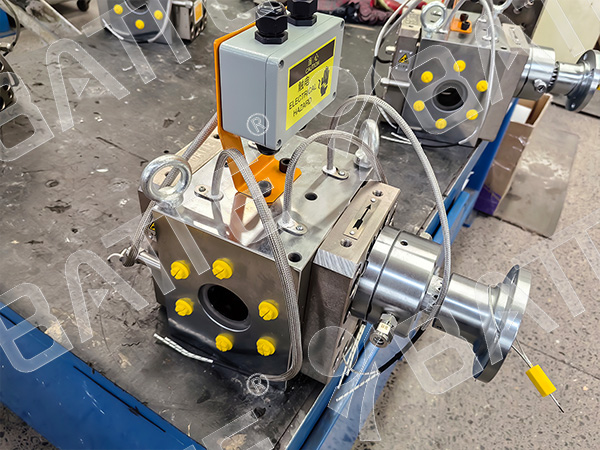

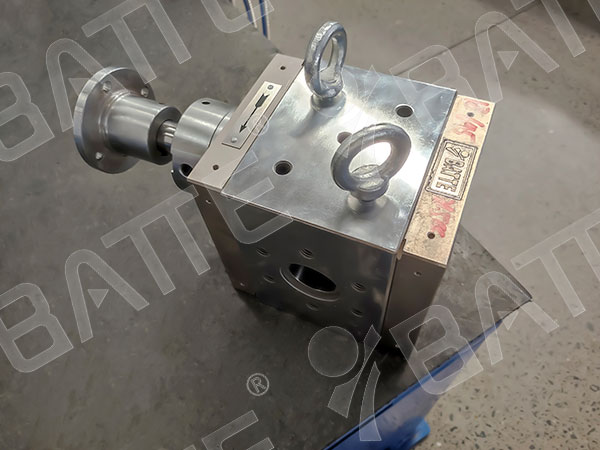

Melt pump for PP woven bag filament production lines
Melt pumps play a pivotal role—akin to the “heart”—in PP woven bag filament extrusion lines. Installed between the extruder and the die head, they form the optimal “extruder-melt pump-die head” combination. By leveraging four key advantages—stable pressure, precise metering, and improved quality and efficiency—they comprehensively enhance production standards.
Precise Control of Melt Flow Rate to Ensure Uniform Filament Drawing
The melt pump is a positive displacement device; each gear rotation delivers a constant displacement. Combined with speed regulation, it enables linear and precise control of melt flow rate. This ensures highly stable PP melt flow from the die, with flow control accuracy reaching ±1%, thereby guaranteeing consistent flat filament diameters and preventing variations in woven bag thickness—and subsequent customer complaints—caused by uneven thickness.
Effectively reduces pressure fluctuations and minimizes filament breakage
During the plasticization process, extruders are susceptible to factors such as uneven feeding and temperature fluctuations, which can cause unstable outlet pressure. The melt pump effectively isolates these upstream fluctuations, controlling outlet pressure variations within an extremely narrow range (as low as ±1%), significantly reducing defects such as filament breakage and uneven filaments, and improving spinning stability.
Improve Production Efficiency and Reduce Material and Energy Waste
The melt pump handles the pressure-building function, allowing the extruder to operate at lower backpressure, reducing screw load, and increasing output by 15%–30%. At the same time, motor energy consumption decreases, and overall production line energy consumption is reduced by approximately 25%, enabling green and efficient production. Material waste is reduced, and the scrap rate drops significantly; companies see a reduction in the annual scrap rate after implementation.
Promoting melt homogenization and improving product performance consistency
The shearing action generated during gear meshing in the melt pump helps further mix the melt, resulting in more uniform temperature and composition. This improves color consistency, dispersion, and mechanical properties, making it particularly suitable for the production of composite woven bags that incorporate color masterbatches or functional additives.
Extend Equipment Lifespan and Reduce Downtime Maintenance Costs
As the operating pressure of the extruder is reduced, wear on the screw and barrel is minimized, thereby extending equipment lifespan. Additionally, the inclusion of a standby pump allows for rapid replacement in the event of a failure, reducing downtime losses by 80% and ensuring continuous production.
In summary, in PP woven bag filament production lines, the Batte melt pump is no longer an optional component but a core configuration for stabilizing product quality, reducing overall costs, and ensuring efficient production. Through precise pressure stabilization and metering, it addresses industry pain points—such as uneven filament thickness, frequent filament breakage, high energy consumption, and severe equipment wear—at the source, maximizing the performance of the “extruder - melt pump - die" to achieve maximum efficiency. For plastic woven bag manufacturers pursuing high quality and high efficiency, installing a melt pump is not only a key step in process upgrading but also a practical choice for long-term cost reduction, efficiency improvement, and enhanced market competitiveness.
