Reactor kettle melt pump

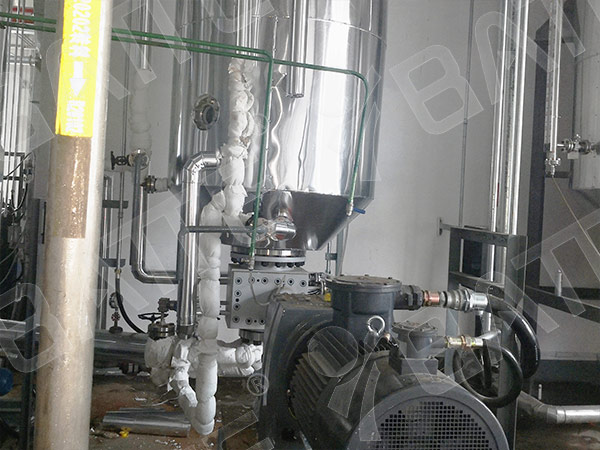

Bottom-discharge pumps for vacuum reactors are suitable for the reaction and transfer of high-temperature, high-viscosity polymer melts that require high discharge pressure, such as in the resin and synthetic fiber industries. They are typically installed at the bottom of the reactor and used as discharge pumps. These pumps feature a relatively large inlet design to facilitate high-flow feeding from the reactor bottom; at the same time, they possess good self-priming capabilities, making them suitable for the transfer and pressurization of polymer materials under vacuum reaction conditions.

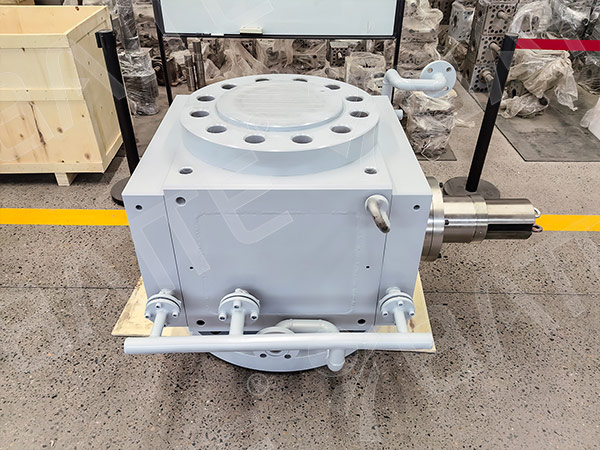

Structure of the Bottom Discharge Pump for a Vacuum Reactor
Rotor Type: Helical or straight-toothed cylindrical gears
Heating Method: Heat transfer fluid heating
Sealing Configuration: Melt dynamic seal + packing seal, high-temperature-resistant packing seal
Materials for Vacuum Reactor Bottom Discharge Pumps
Pump Body: Stainless Steel / Alloy Steel / Corrosion-Resistant Alloy
Gears: Nitrided Steel / Tool Steel / Stainless Steel + Coating / Corrosion-Resistant Alloy
Sliding Bearings: Tool Steel / Alloy Steel / Stainless Steel + Coating / Corrosion-Resistant Alloy
Technical Specifications for Bottom-Mounted Pumps
Viscosity of Pumped Medium: 1–30,000 Pa•s
Suction Pressure: Vacuum–4 MPa
Discharge Pressure: 0–35 MPa
Allowable Pressure Differential: 25 MPa
Operating Temperature: ≤350°C
Heating Method: Electric heating / Thermal oil heating

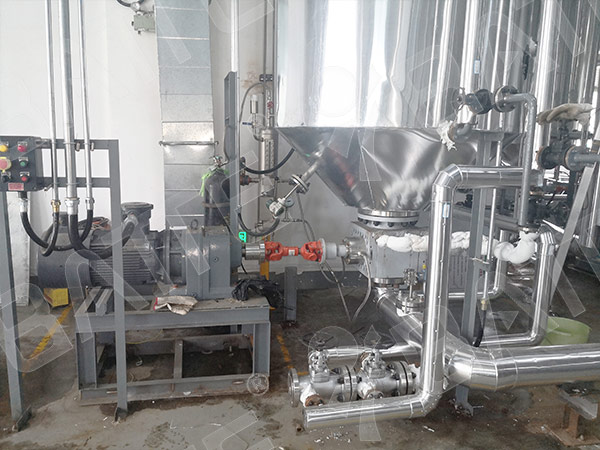

Reactor melt pumps are typically installed at the bottom of the reactor and driven by a motor, reducer, and universal joint. Reactor gear pumps are positive-displacement, forced-delivery pumps; their output flow rate can be adjusted by changing the pump’s rotational speed. Variable-frequency speed control is recommended to achieve near-linear flow output from the gear pump.
Our company specializes in the manufacture of melt gear pumps and related products, offering reactor bottom discharge pumps with flow rates ranging from 5 cc/r to 12,000 cc/r. With extensive experience across multiple industries and various polymer production processes, we provide comprehensive pump selection, configuration, and solutions tailored to our customers’ specific operating conditions.
