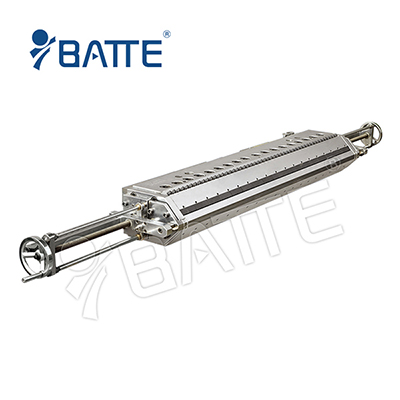

Lamination Film Die
Product description Coating die structure of hangers, special die lip, with a 90 choke rod, can adjust material flow. The thickness of the products can be adjusted.Die using imported high-quality die steel or alloy steel.
Lamination Film Die Application:Packaging/Health industry/Construction industry/car
|
Item |
Specification |
|
Thickness of the product |
Thickness:0.002mm or 2μm (rate 5%) |
|
Width of the die |
Width: 700-4000mm adjustable |
|
Heat Voltage |
220V or according your need |
|
Heating way |
Heating bars made of stainless steel from Italy |
|
Die material |
2738 from Germany or P20 |
|
Fastening piece |
High strength at 12.9 grade |
|
Polishing |
Lips and surface of flowing: 0.02-0.03(μm),Other surfaces: 0.03-0.04(μm). |
|
Chrome thickness |
0.035-0.045mm |
|
Surface hardness |
60-70HR |
|
Installation |
according costumer’s request |
